To learn 4 types of angular contact spherical plain bearings in 1 minute!

The joint bearing is a spherical plain bearing. The sliding contact surface is an inner spherical surface and an outer spherical surface. It can be rotated and oscillated at any angle during movement. It is treated with various special processes such as surface phosphating, blasting, inserting and spraying. The method is made. The joint bearing has the characteristics of large load capacity, impact resistance, corrosion resistance, wear resistance, self-aligning, and good lubrication.

4 types of angular contact spherical plain bearings:

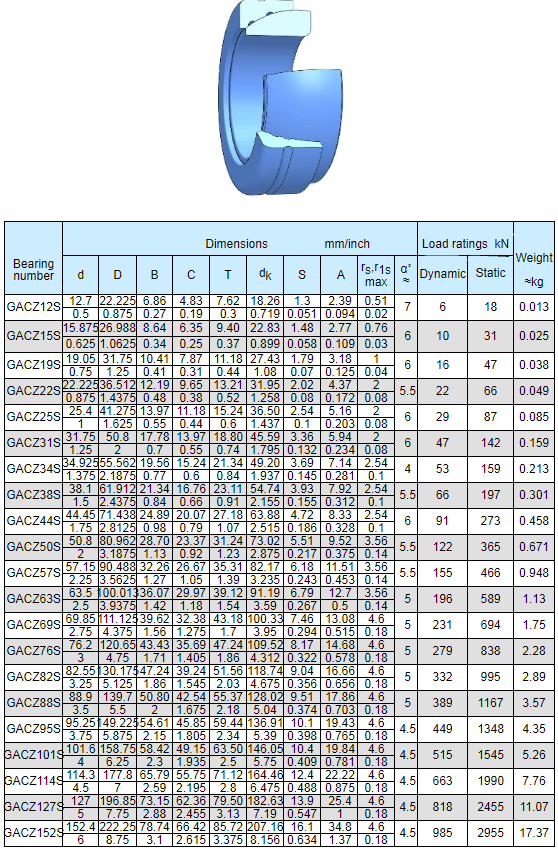

Angular contact spherical plain bearings Product Code: GACZ...S 12.7～152.4
Angular contact slick plain bearings: steel/steel
Angular contact spherical plain bearings Features: The product features the same as the GAC...S series, but in English sizes.
Angular contact ball plain bearings temperature range: -50 ° C ~ +150 ° C

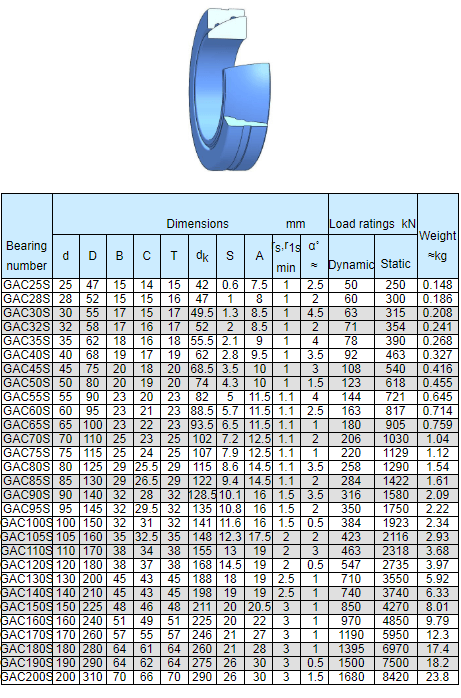

Angular contact spherical plain bearings Product Code: GAC...S 25～200
Angular contact slick plain bearings: steel/steel
Angular contact spherical plain bearings Features: The inner and outer ring materials are bearing steel, quenched and phosphatized. The outer ring has oil grooves in the oil groove. The inner spherical surface has two cross-lubrication grooves, and the sliding surface is coated with molybdenum disulfide.
Angular contact ball plain bearings temperature range: -50 ° C ~ +150 ° C

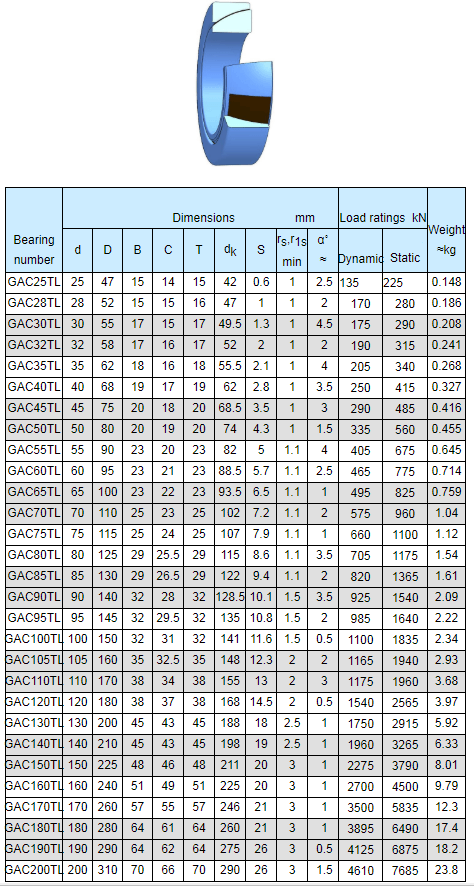

Angular contact spherical plain bearings Product Code: GAC...TL 25～200
Angular contact spheroidal plain: steel/PTFE braid
Angular contact spherical plain bearings Features: outer ring material is bearing steel, quenched, spherical PTFE braided; inner ring material is bearing steel, quenched, spherical hard chrome plated.
Angular contact ball plain bearings temperature range: -50 ° C ~ +150 ° C

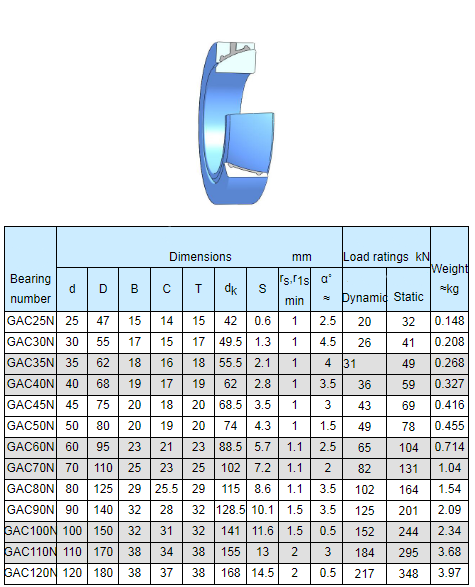

Angular contact spherical plain bearings Product Code: GAC...N 25～120
Angular contact spherical plain bearings: steel/PTFE plastic
Angular contact spherical plain bearings Features: The outer ring material is bearing steel, quenched, the spherical surface is lined with PTFE plastic, the inner ring material is bearing steel, quenched, and the spherical surface is hard chrome plated.
Angular contact ball plain bearings temperature range: -40 ° C ~ +75 ° C
