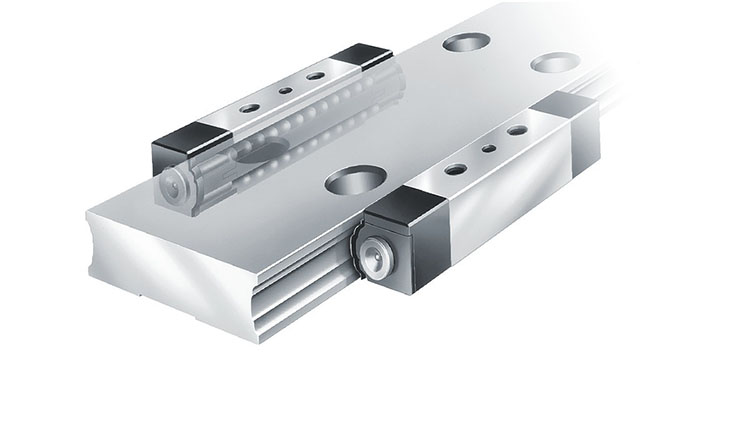

Linear guidance systems with linear recirculating ball bearing units comprise the linear ball bearings, ball bearing carriage and guideways. They facilitate large distances between support points, can be adjusted for clearance and have standard quality class G3.
The full-complement shoes travel on one or both sides of the guideways and have a high load capacity despite their small dimensions. When the shoes are bolted to ball bearing carriage, they form four-row linear ball bearing and guideway assemblies together with the guideways. The scrapers on the facing and longitudinal sides that form a gap seal in conjunction with the guideway seal the shoes on all sides. Linear recirculating ball bearing units can be relubricated.

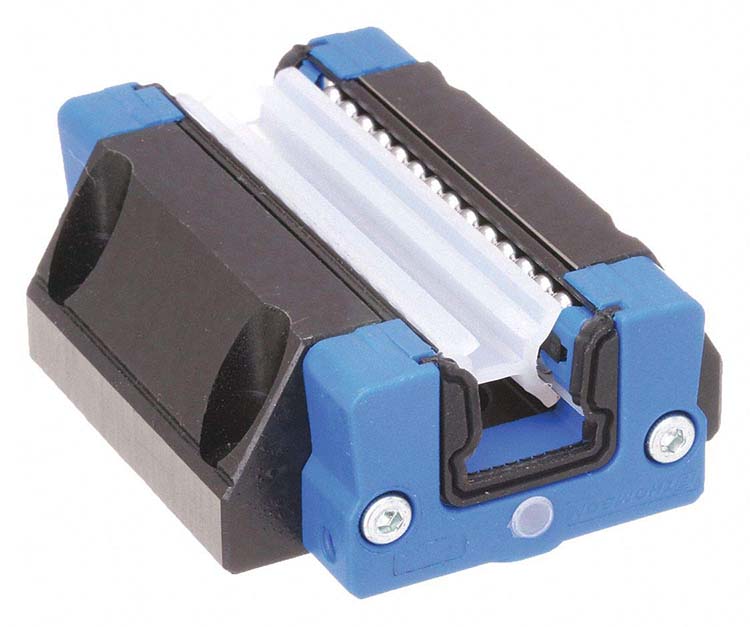

Operating with less friction than sleeve and roller bearing carriages, ball bearing carriage provide accurate movement and positioning in high-speed, high-load applications. Mount in any orientation without affecting load capacity. End seals keep lubricant in and dirt out.
Standard ball bearing carriage are narrower than flanged carriages, making them better for confined spaces.
Flanged ball bearing carriage have through-holes for access when fastening loads.

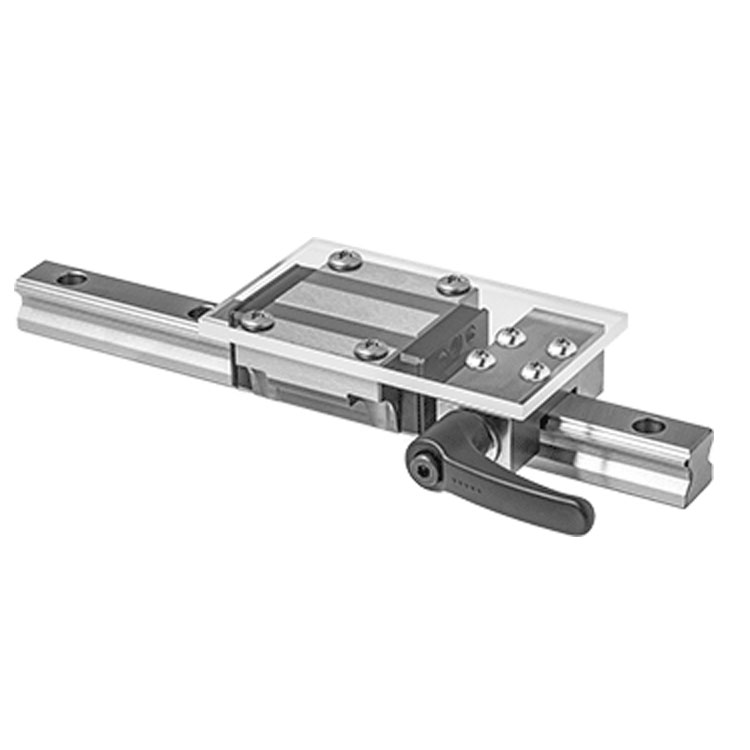

Add a hand brake to lock carriages in position. To install, fasten the brake to the same mounting surface as your carriage.
Mounting hole plugs protect mounting fasteners from corrosion.
Side-Mount ball bearing carriage and Guide Rails
Mount to vertical surfaces for applications where tight tolerances aren't required. End seals keep lubricant in and dirt out.
Use the connector plates to mount rails end to end for greater travel.
Suitable for clean room use, these ball bearing carriage and guide rails are made entirely of stainless steel. Ball bearings provide accurate movement and positioning at high speeds under heavy loads. Mount in any orientation without affecting load capacity. End seals keep lubricant in and dirt out.
Get linear guide carriages and slides from us that can support and allow low-friction, precise linear translation of loads and help provide smooth, quiet operation at high or low speeds. Choose from standard, narrow and wide ball carriages with and without Duralloy finish. Roller carriages can provide increased load capacities. Also find space-saving miniature guide rail and carriage assemblies. Shop today for the linear guide carriages and slides to fit your needs.
Welcome to contact me to get the price of ball bearing carriage!
Contact: Ellen
Email: [email protected]
Skype: +8618668909563
MP/Whatsapp: +8618668909563
Wechat:18668909563
