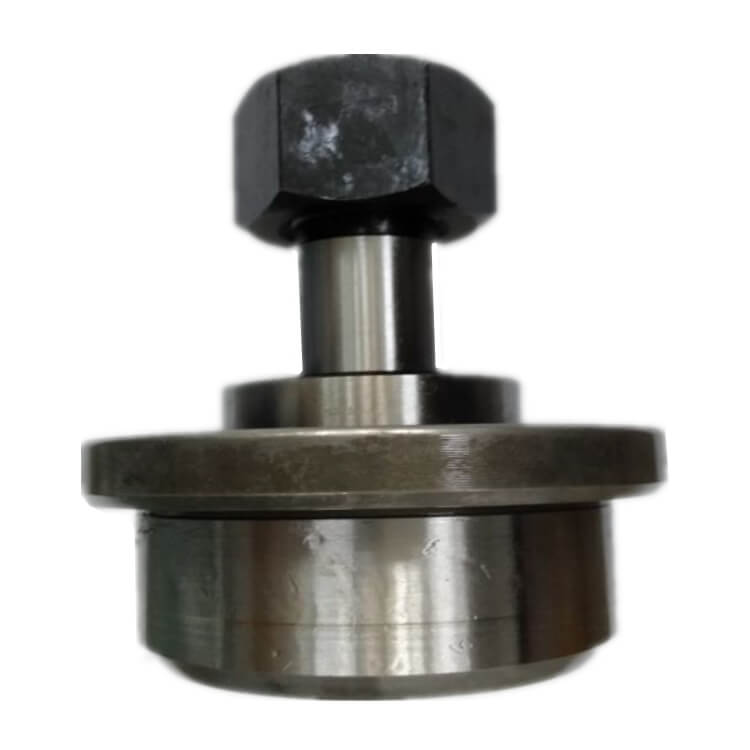

Installation of flange guided track rollers:
1. After the center line of the mounting hole is at right angles to the direction of movement of the flange guided track rollers, the side of the mounting hole is aligned according to the size/size in the dimension table. Do not hit the flange of the flange guided track rollers directly with a hammer. Otherwise, it may cause poor rotation or breakage.
2. The mark on the side of the rod end flange of the flange guided track rollers indicates the oil hole position of the track surface. S. When installing, be careful not to install the oil hole in the load domain. The oil hole is located in the load domain and shortens the service life of the bearing. The vertical hole in the center of the rod end is used to refuel or stop.
3. Tighten the nuts of the flange guided track rollers not to exceed the maximum tightening torque range shown in the dimension table. Excessive tightening torque sometimes breaks the threaded end of the rod end. In addition, use lock nuts, spring washers or special lock nuts if used under operating conditions that may loosen the nut.
4. Eccentric flange guided track rollers and cam followers with eccentric bushings The position S of the outer ring of the flange guided track rollers can be adjusted by using a screwdriver or a hexagonal hole at the top of the rod end to rotate. The rod end can be tightened with a spring washer or the like. The tightening nut should not exceed the maximum tightening torque range shown in the dimension table.
When carrying the impact load and need to properly maintain the eccentric adjustment, it is recommended to use the hole through the shaft hole to open the hole or the eccentric bushing and fix it with the positioning pin. However, the rod end having a rod end diameter of 8 mm or less (eccentric sleeve diameter 11 mm) is hardened by quenching.
