The installation steps of linear bearing carriage are as follows:

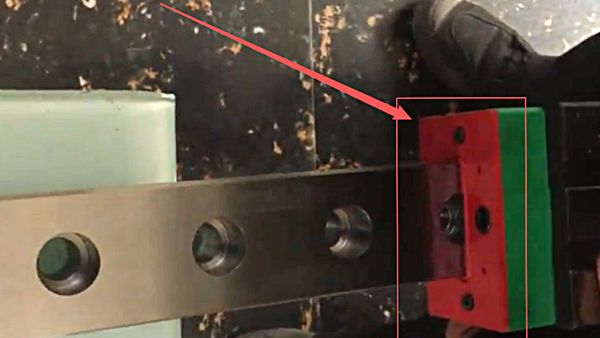

1. Align the guide rail with the linear bearing carriage interface and push it gently, the place indicated by the arrow in the figure below.

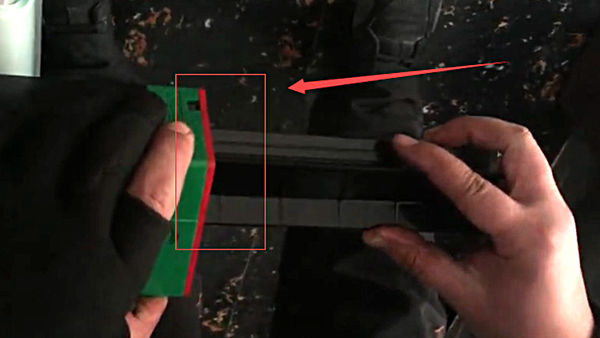

2. While pushing the linear bearing carriage, hold the tail of the linear bearing carriage by your back. Eject the plastic block in the linear bearing carriage. Where the arrow points in the image below.

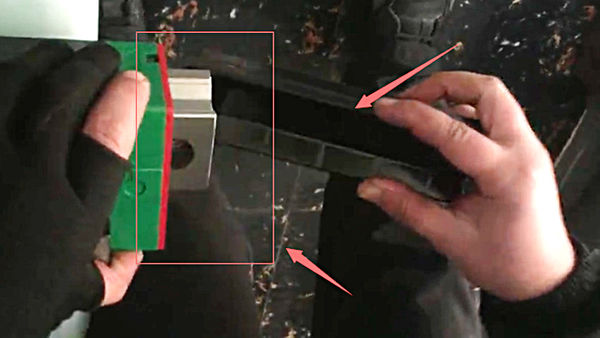

3. Until the plastic block comes off, the linear bearing carriage completely enters the guide rail, exposing the guide rail metal, and the installation is complete. Where the arrow points in the image below.

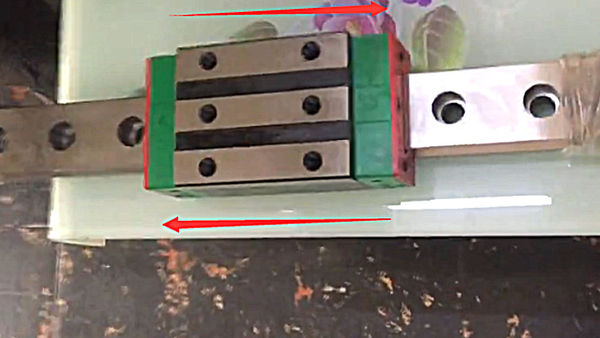

4. Push the linear bearing carriage back and forth a few times. The test is successful if it is not blocked.
Steps for installing and locking the linear bearing carriage:
1. Gently place the workbench on the linear guide slider, and do not fully tighten the mounting bolts.
2. The reference side of the linear guide slider is contacted with the reference surface on the side of the table by the set screw to position the table.
3, Completely tighten the reference and driven side mounting bolts to complete the installation.
Note: If the tightening sequence of the assembly bolts is performed in a diagonal order, the worktable can be evenly fixed.
This method does not take time to adjust the straightness of the linear guide slider, and does not need to process the positioning pins for fixing, so the installation man-hour can be greatly reduced.
In addition, different types of rails have different methods for installing the slider. Such as circular guides.
