Do you know the grinding method of miniature ball screws?

1,841 Published by Jun 13,2019

miniature ball screws grinding method
Compared with the lead screw, the miniature ball screws has different structure and parameters, such as the rolling of the miniature ball screws, and the diameter of the center circle of the ball is the matching size of the lead screw nut. The type is trapezoidal and has a median diameter d. , D. In order to check the matching size of the miniature ball screws pair, it has its particularity in terms of grinding methods and machine tool adjustment.

1. Grinding wheel selection
The spiral raceway of the miniature ball screws is a single arc or a double arc. The contact area with the workpiece during grinding is large, and the relative grinding heat is also large. It is better to use a white corundum wheel with a coarser grain and a slightly softer hardness. It is best to use an atmospheric hole grinding wheel.

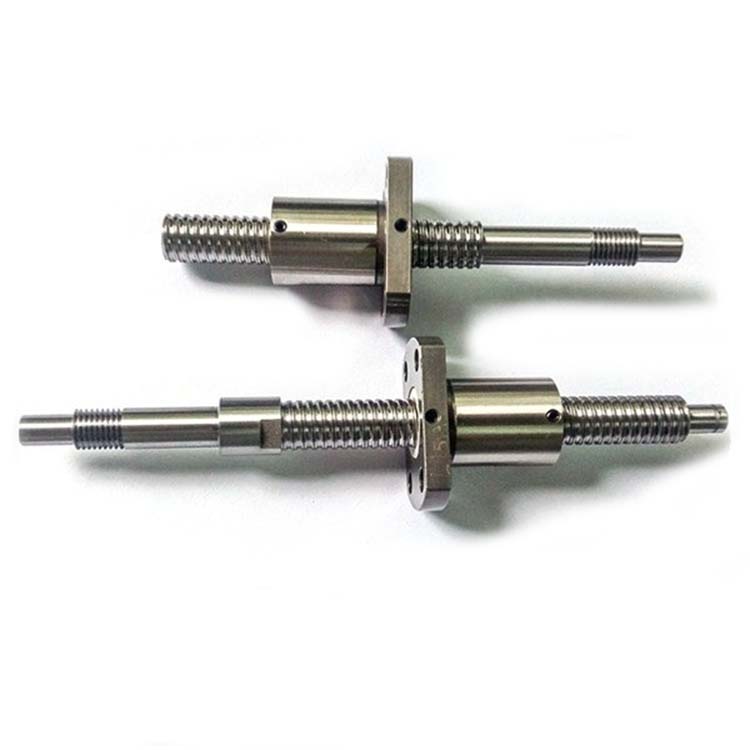

miniature ball screws
(1) Atmospheric hole grinding wheel is a kind of pores which are formed by the calcination after the high-temperature roasting, such as naphthalene, coke, etc., in the manufacturing process of the abrasive tool according to the original abrasive grains, binder and pores.

The air hole ceramic bond grinding wheel has a porosity of 50A to 60%, and the pore size can reach 0.5, 2mm. Because the grinding wheel has many air holes, large size and loose structure, it has the characteristics of not easy to block, good chip removal and cooling conditions, long service life and strong cutting ability during grinding.

Since the surface roughness of the workpiece to be processed is related to the size of the abrasive grains used, and the relationship between the size of the pores is not obvious, the selection principle of the atmospheric hole grinding wheel is similar to that of the general abrasive tool. In addition to being particularly suitable for grinding miniature ball screws, atmospheric hole grinding wheels are widely used for grinding lead miniature ball screws, heat-sensitive materials (such as magnetic steel, tungsten-silver alloy), thin-walled parts and easily deformable workpieces. Soft metals (such as aluminum), carbides, green ceramic components, and metal materials that are difficult to machine with general grinding wheels. It is also suitable for processing rubber products (such as cyanide rubber rolls for textile industry, rubber rollers for printing, etc.), non-metallic soft materials such as plastic products, and hard minerals (such as marble).

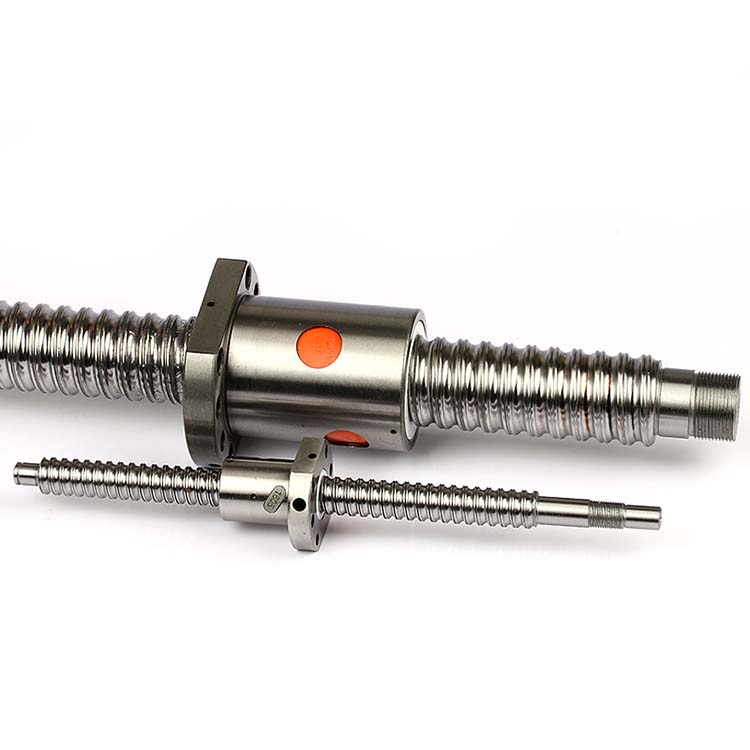

original miniature ball screws

The micro-porous pine tissue wheel is another type of atmospheric hole grinding wheel. Its pore size is smaller than that of the atmospheric hole grinding wheel, generally about 0.5 ram, but the grinding wheel has a uniform air hole than the atmospheric hole grinding wheel.

Whether it is an atmospheric hole grinding wheel or a micro-porous grinding wheel, in addition to the chip removal effect, the air hole can store the grinding fluid and bring it into the grinding zone to better exert the cooling lubrication effect. Therefore, it is also suitable for the strong grinding process. It has a remarkable effect in slow-feeding and deep-depth grinding of the heat-resistant alloy (such as Ia738) blade root groove. It can also be applied to multi-thread thread grinding and miniature ball screws groove. The center cuts into the grinding and the centerless grinding of the outer circumference of the piston pin.
(2) Select the grinding wheel according to the radius of the rhyme arc according to the miniature ball screws media. See Table 8-4

in stock miniature ball screws

2. Wheel dressing
The accuracy of the radius R of the raceway of the miniature ball screws and the eccentricity e of the double arc is generally 0.01 mm. In order to ensure that the ball screw is finally assembled, the thread rolling is caused by the line connecting the ball center and the contact point of the rolling point in the normal section and the vertical line of the thread axis. It is especially important to properly trim the grinding wheel when clamping the j' island, to achieve accurate raceway type, finer surface roughness and reasonable production efficiency.

ZYSL company specializes in miniature ball screws for many years. All raw materials and accessories have been carefully selected to ensure a good user experience.

Welcome to contact us!
