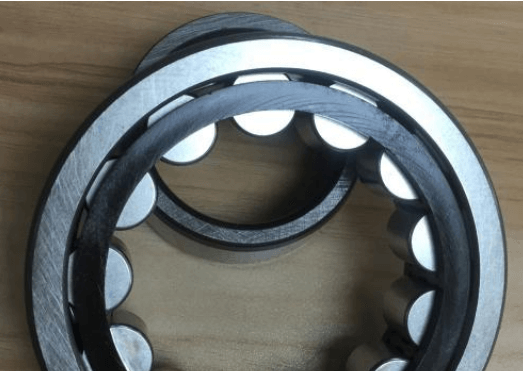

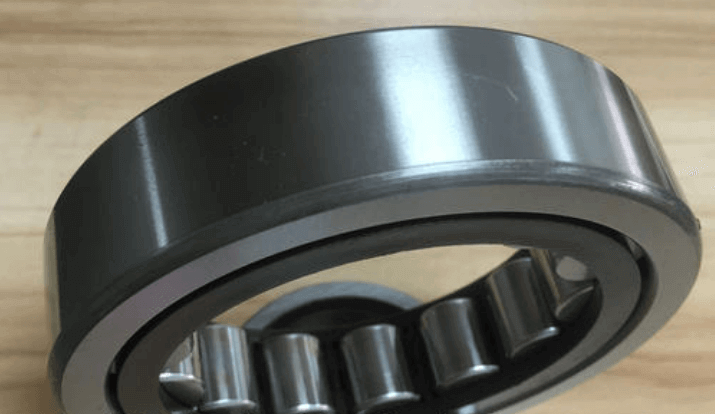

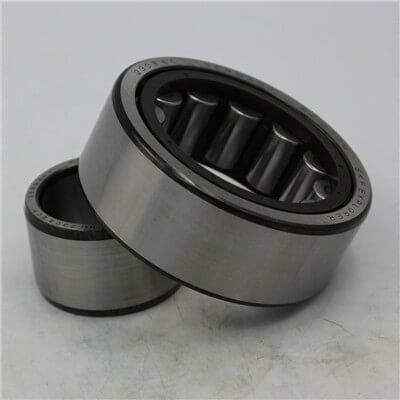

What’s the type of nu ecp bearing?

The cylindrical roller is in line contact with the raceway, and the radial load capacity is large. It is not only suitable for bearing heavy load and impact load, but also suitable for high-speed rotation.
The nu ecp bearing raceway and rolling elements are geometric shapes. After the improved design, it has a higher load carrying capacity. The new structural design of ribs and roller end faces not only improves the axial load carrying capacity of the bearing, but also improves the lubrication conditions of the contact area between the roller end face and the rib, and The performance of the bearing.

nu ecp bearing has ribs on both sides of the outer ring and no ribs on the inner ring. It can also allow displacement of the shaft relative to the bearing seat in both axial directions. Therefore, this type of structure is suitable for use as a floating end bearing.
EC: Cage code. The explanation is: optimizing the internal design, equipped with more or larger diameter rollers. The end face of the roller has been improved and designed to better contact the rib.
P: Represents synthetic resin cage.
ECP means nylon cage

Features of nu ecp bearing
1. The roller and raceway of nu ecp bearing are in line contact or repaired off-line contact, with large radial bearing capacity, suitable for bearing heavy loads and impact loads.
2. The friction coefficient is small, suitable for high speed, and the limit speed is close to the deep groove ball bearing.
3. The nu ecp bearing can move axially and can adapt to changes in the relative position between the shaft and the housing caused by thermal expansion or installation errors, and can be used as a free end bearing.
4. The processing requirements for the shaft or the seat hole are high. The relative deflection of the outer ring axis after the bearing is installed must be strictly controlled to avoid contact stress concentration.
5. The inner ring or outer ring of nu ecp bearing can be separated for easy installation and disassembly

nu ecp bearing can be used for: concrete pump trucks, screw pumps, cement machinery, packaging machinery, agricultural laboratory equipment, tower reactors, letterpress printing machines, instrumentation, rubber setting machines, plastic wire drawing machines, conveyors, mixers, Soldering station, monitoring equipment, sewing machine parts, machine tool rest, heat press, screw chiller, etc.
