home / ZYSL bearing / 6309 bearing 45*100*25mm deep groove ball bearing 6309

To be the top bearing manufacturers in world is our goal,ZYSL bearing Co., Ltd is the first choice of your bearing manufacturers list!

6309 bearing 4510025mm deep groove ball bearing 6309

6309 bearing 45*100*25mm deep groove ball bearing 6309: 1. high speed and low noise 2. in stock,delivery within 24 hours 3. competitive price! 4. best service for you!

Product Specification:

Model NO.:6309
ID*OD*B:45*100*25mm
Material:Chrome steel
Stock:in stock
Brand:ZYSL

Inquiry Now

May you like

silicon nitride ceramic bearing

Product Details

6309 bearing 45*100*25mm deep groove ball bearing 6309

6309 bearing 45*100*25mm

6309 bearing supplier

6309 bearing distributor

original 6309 bearing 6309 bearing original in stock 6309 bearing

6309 bearing producer

Bearing Description of 6309 bearing 45*100*25mm deep groove ball bearing 6309:

6309 bearing 45*100*25mm deep groove ball bearing 6309 is the most common type of rolling bearing. The basic deep groove ball bearing consists of an outer ring, an inner circle, a set of steel balls and a set of maintenance frames.
6309 bearing 45*100*25mm deep groove ball bearing 6309 is sealed and open two kinds of structure, open without sealing structure refers to the bearing, seal type deep groove ball into dust seal and oil seal. The dust - proof sealing material is a sheet metal stamping, which simply prevents the dust from entering the bearing roller. The oil-proof type is the contact oil seal, which can effectively prevent the grease spillover inside the bearing.

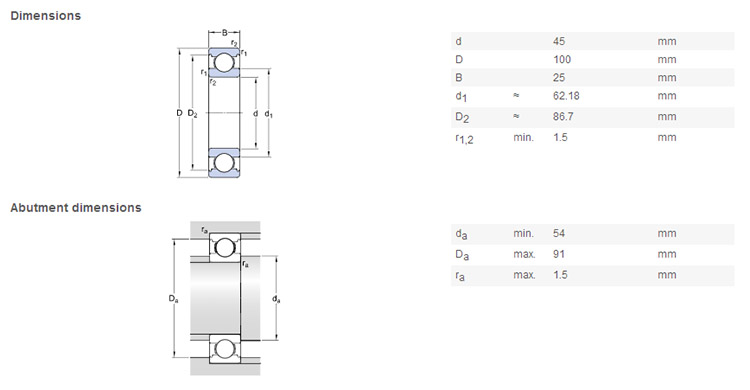

Parameters of 6309 bearing 45*100*25mm deep groove ball bearing 6309

6309 bearing high quality

Product name	6309 bearing 4510025mm deep groove ball bearing 6309
Model number	6309
Type	Deep Groove Ball beari
Material	Chrome steel/stainless steel/ceramic
Number of row	Single row
Seals type	ZZ 2RS OPEN
Bore Size(mm)	45
Outside diameter(mm)	100
Weith(mm)	25
Brand	OEM,ZYSL
Cr(kN)	55.3
Cor(kN)	31.5
Grease speed (r/min)	15000
Oil speed(r/min)	9500
Service	OEM ODM
Cage Material	Steel Cage, Brass Cage, Nylon Cage

6309 bearing distributor

bearing manufacturer 6309 bearing

chrome steel 6309 bearing

6309 bearing wholeseller

steel cage 6309 bearing

high quality 6309 bearing

FAQ of 6309 bearing 45*100*25mm deep groove ball bearing 6309
1. How long is your delivery term of 6309 bearing 45*100*25mm deep groove ball bearing 6309?
Our standard product delivery term is normally 1-3 days. A new product development cycle is 15-20 days in normal. Under normal circumstances, there are standing stock for regular types. You can email us to learn more details.
2. Where is your port of shipment located for 6309 bearing 45*100*25mm deep groove ball bearing 6309?
Our main port of shipment is Guangzhou port, and we may operate at other ports if required by the customer.
3. I couldn’t find a design to fit my application in your catalog. Can you help me design a bearing?
Yes, technical expertise is available to assist you with engineering design for custom products. Available options include, but are not limited to, custom rings, retainers, balls, shields, lubricants, and packaging. We look forward to working with you to satisfy your rotary motion requirements.

If you need the 6309 bearing 45*100*25mm deep groove ball bearing 6309 or any other bearings, please contact me!
