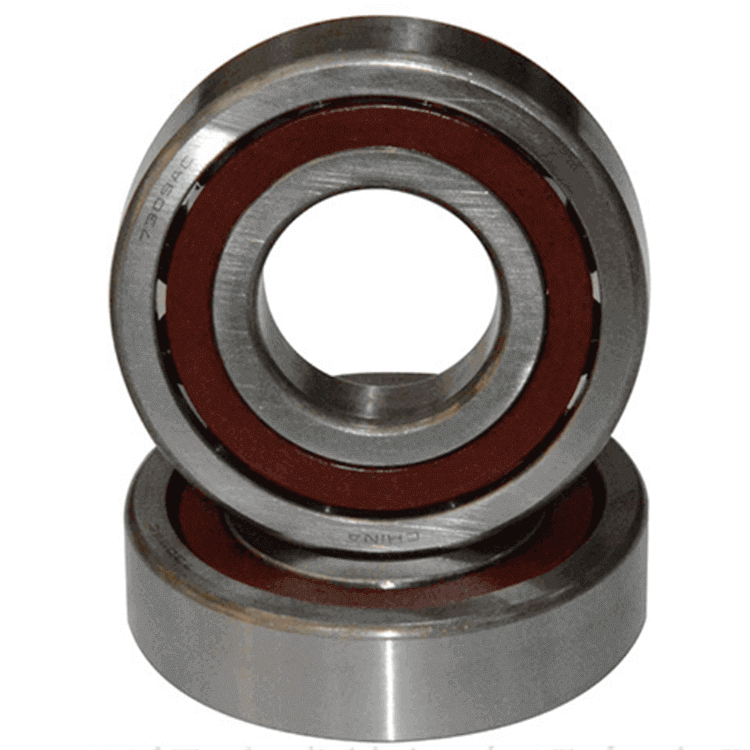

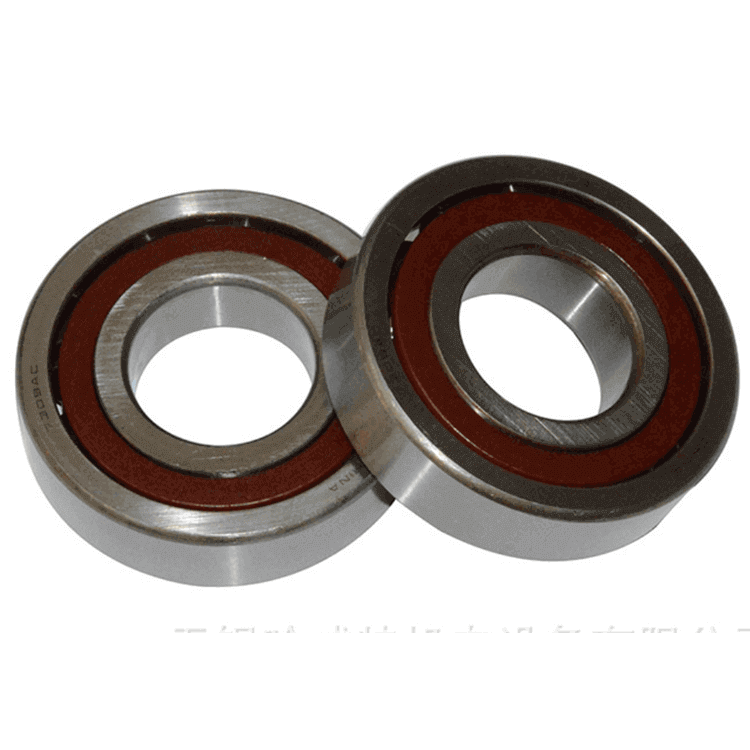

Bearing Description of 7309 bearing 45*100*25mm 7309AC angular contact ball bearings:
7309 bearing 45 * 100 * 25mm 7309AC angular contact ball bearings can withstand both radial and axial loads. It can run at high speed. The larger its contact angle, the higher its axial load capacity.
Angular contact ball bearings can be divided into two types: single row angular contact ball bearings and double row angular contact ball bearings.
7309 bearing 45 * 100 * 25mm 7309AC angular contact ball bearings can only withstand the axial load of a single bearing. When it is subjected to radial loads, it creates additional axial forces, so it is always used in pairs.
Double row angular contact ball bearings can withstand radial and axial loads, with radial loads.
application:
7309 bearing 45 * 100 * 25mm 7309AC angular contact ball bearings are mainly used in food machinery, electrical equipment, painting equipment, high frequency motors, centrifugal separators, machine tool spindles, etc.
Double row angular contact ball bearings are mainly used in oil pumps, printing machines, food packaging machinery, electric welding machines, fine chemical machinery, etc.

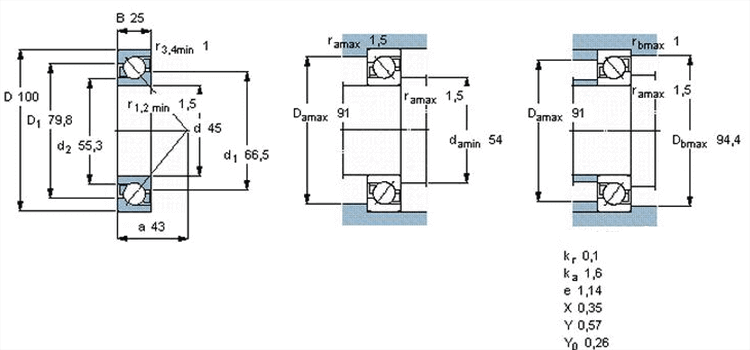

Parameters of 7309 bearing 45*100*25mm 7309AC angular contact ball bearings:
