ZYSL cheap linear bearings and rails producer TBR16 Linear Motion rail ball slider

ZYSL cheap linear bearings and rails producer TBR16 Linear Motion rail ball slider with high precision,lomh using life,fast delivery and cheap price!

Product Specification:

Model NO.:TBR16
ID:16 mm
Type:cheap linear bearings and rails
Brand:ZYSL
Origin:China

Inquiry Now

May you like

silicon nitride ceramic bearing

Product Details

ZYSL cheap linear bearings and rails producer TBR16 Linear Motion rail ball slider

cheap linear bearings and rails

sell cheap linear bearings and rails

cheap linear bearings and rails seller

supply cheap linear bearings and rails produce cheap linear bearings and rails

cheap linear bearings and rails producer

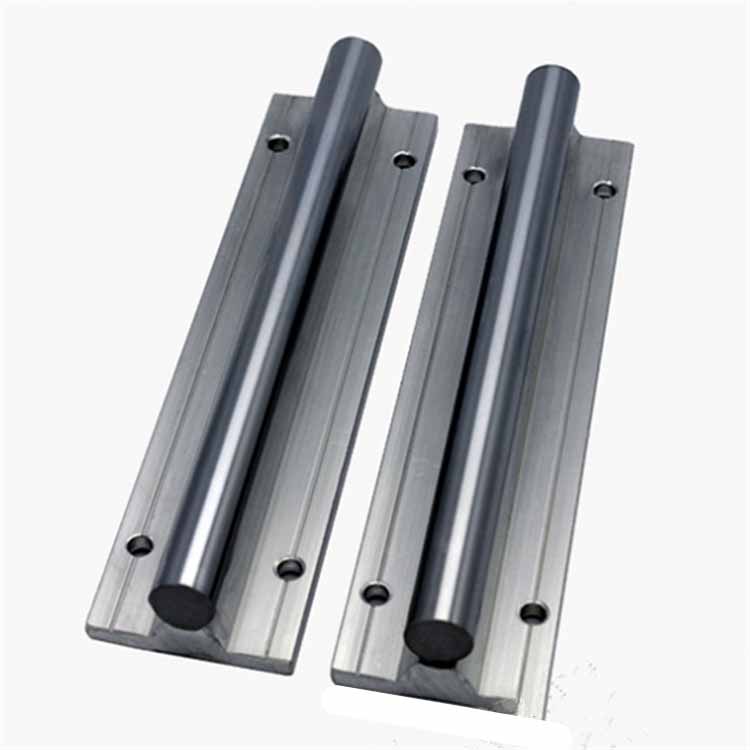

This is ZYSL cheap linear bearings and rails producer TBR16 Linear Motion rail ball slider with the aluminium case, shafts and aluminium rail for preventing deflexion. This is the complete sliding unit systems and can be clamped simply tightening by bolt with high accuracy. Support Rail Unit provides maximum rigidity and stiffness to the shaft throughout the whole stroke, and ensure the performance of the unit. We can provide the all Linear Rail Supports with diameter from 16 to 50, Max. length up to 6000mm.
Like:
TBR...UU TBR...LUU series:
TBR16UU, TBR20UU, TBR25UU, TBR30UU TBR16LUU, TBR20LUU, TBR25LUU, TBR30LUU

SBR...UU SBR...LUU Series
SBR10UU, SBR13UU, SBR16UU, SBR20UU, SBR25UU, SBR30UU, SBR35UU, SBR35UU, SBR40UU, SBR50UU

Related models and specifications of ZYSL cheap linear bearings and rails producer TBR16 Linear Motion rail ball slider:

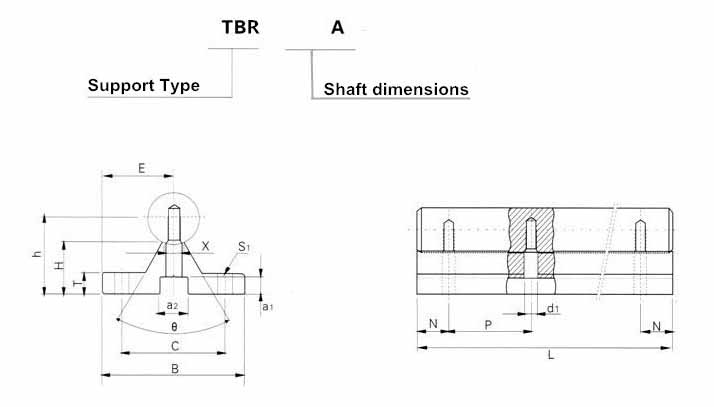

cheap linear bearings and rails drawing

support type	shaft Dimensions	Dimensions(mm)									weight(kg/m)
support type	shaft Dimensions	E	h	B	H	T	F	C	S1	S2	weight(kg/m)
TBR16	f16	25	22.14	50	6	18.71	37	37	f5.5	5.5x9.5x5.4	1.1
TBR20	f20	25.7	29.01	55	8	18.96	40	40	f5.5	5.5x9.5x5.4	1.8
TBR25	f25	32.5	31.97	65	10	20	45	45	f6.6	6.6x11x6.5	2.05
TBR30	f30	37.5	36.52	75	12	22.96	55	55	f6.6	6.6x11x6.5	2.8

cheap linear bearings and rails factory

FAQ of ZYSL cheap linear bearings and rails producer TBR16 Linear Motion rail ball slider:
1. How long is your delivery term of ZYSL cheap linear bearings and rails producer TBR16 Linear Motion rail ball slider?
Our standard product delivery term is normally 30 days. A new product development cycle is 60 days in normal. Under normal circumstances, there are standing stock for regular types. You can email us to learn more details.
2. Where is your port of shipment located for ZYSL cheap linear bearings and rails producer TBR16 Linear Motion rail ball slider?
Our main port of shipment is Guangzhou port, and we may operate at other ports if required by the customer.
3. I couldn’t find a design to fit my application in your catalog. Can you help me design a bearing?
Yes, technical expertise is available to assist you with engineering design for custom products. Available options include, but are not limited to, custom rings, retainers, balls, shields, lubricants, and packaging. We look forward to working with you to satisfy your rotary motion requirements.

If you need the ZYSL cheap linear bearings and rails producer TBR16 Linear Motion rail ball slider or any other bearings, please contact me!
