To be the top bearing manufacturers in world is our goal,ZYSL bearing Co., Ltd is the first choice of your bearing manufacturers list!
High temperature bearing LTS6301ZZ high temperature resistant deep groove ball bearing 6301ZZ is mainly used in high temperature, dusty, low-speed loading,it can not be used under the harsh environment of refueling. The 970 type produced by our company fully meets the free running condition under this environmental condition. It has holders of type TS60000 and T60000. High and medium speed; no cage for T60000 and self-lubricating T60000C type, for low speed 100< rev/min, or mid-speed for flat installation, T60000 single row ball is full of raceways, with greater bearing capacity. Production specifications range: 10 ≤ d ≤ 300. High temperature resistant to 300, 500, 800 °C three levels, mainly to bear radial load, can also withstand axial load in either direction.

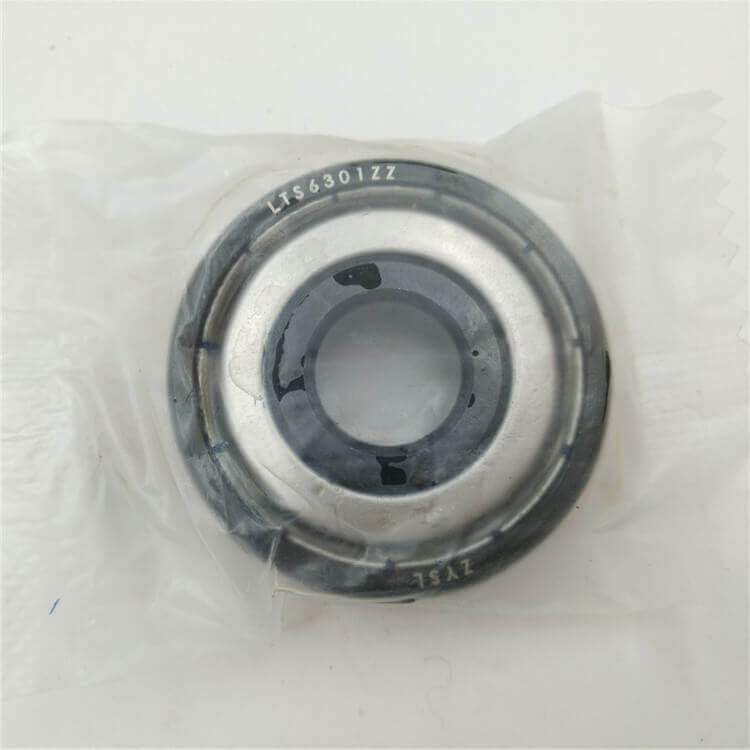

High temperature bearing LTS6301ZZ high temperature resistant deep groove ball bearing 6301ZZ
Related models of High temperature bearing LTS6301ZZ
T60000、T60000C、TS60000 series High temperature deep groove ball bearings | |||||||
Model NO. | d×D×B | kg/PCS | Model No. | d×D×B | kg/PCS | ||
T608X T608XC | TS608X | 8× 42×20 | 0.21 | T6300 T6300C | TS6300 | 10× 35×11 | 0.05 |
T6000X T6000XC | TS6000X | 10× 42×20 | 0.19 | T6301 T6301C | TS6301 | 12× 37×12 | 0.065 |
T6000X1 T6000X1C | TS6000X1 | 10× 45×16 | 0.26 | T6302 T6302C | TS6302 | 15× 42×13 | 0.09 |
T6001 T6001C | TS6001 | 12× 28× 8 | 0.027 | T6304 T6304C | TS6304 | 20× 52×15 | 0.144 |
T6002 T6002C | TS6002 | 15× 32× 9 | 0.03 | T6305 T6305C | TS6305 | 25× 62×17 | 0.23 |
T6003 T6003C | TS6003 | 17× 35×10 | 0.045 | T6306 T6306C | TS6306 | 30× 72×19 | 0.35 |
T6004 T6004C | TS6004 | 20× 42×12 | 0.07 | T6307 T6307C | TS6307 | 35× 80×21 | 0.47 |
T6005 T6005C | TS6005 | 25× 47×12 | 0.088 | T6308 T6308C | TS6308 | 40× 90×23 | 0.64 |
T6006 T6006C | TS6006 | 30× 55×13 | 0.1 | T6309 T6309C | TS6309 | 45×100×25 | 0.88 |
T6007 T6007C | TS6007 | 35× 62×14 | 0.176 | T6310 T6310C | TS6310 | 50×110×27 | 1.12 |
T6008 T6008C | TS6008 | 40× 68×15 | 0.22 | T6311 T6311C | TS6311 | 55×120×29 | 1.45 |
T626X T626XC | TS626X | 6× 30×27 | 0.1 | T6312 T6312C | TS6312 | 60×130×31 | 1.76 |
T628X T628XC | TS628X | 8× 47×19 | 0.2 | T6313 T6313C | TS6313 | 65×140×33 | 2.2 |
T6200 T6200C | TS6200 | 10× 30× 9 | 0.032 | T6314 T6314C | TS6314 | 70×150×35 | 2.75 |
T6201 T6201C | TS6201 | 12× 32×10 | 0.04 | T6315 T6315C | TS6315 | 75×160×37 | 3.2 |
T6202 T6202C | TS6202 | 15× 35×11 | 0.05 | T6316 T6316C | TS6316 | 80×170×39 | 3.86 |
T6203 T6203C | TS6203 | 17× 40×12 | 0.07 | T6318 T6318C | TS6318 | 90×190×43 | 5.89 |
T6204 T6204C | TS6204 | 20× 47×14 | 0.11 | T6403 T6403C | TS6403 | 17× 62×17 | 0.25 |
T6205 T6205C | TS6205 | 25× 52×15 | 0.14 | T6404 T6404C | TS6404 | 20× 72×19 | 0.44 |
T6206 T6206C | TS6206 | 30× 62×16 | 0.21 | T6405 T6405C | TS6405 | 25× 80×21 | 0.6 |
T6207 T6207C | TS6207 | 35× 72×17 | 0.3 | T6406 T6406C | TS6406 | 30× 90×23 | 0.8 |
T6208 T6208C | TS6208 | 40× 80×18 | 0.39 | T6407 T6407C | TS6407 | 35×100×25 | 1.01 |
T6209 T6209C | TS6209 | 45× 85×19 | 0.42 | T6408 T6408C | TS6408 | 40×110×27 | 1.3 |
T6210 T6210C | TS6210 | 50× 90×20 | 0.47 | T6409 T6409C | TS6409 | 45×120×29 | 1.73 |
T6211 T6211C | TS6211 | 55×100×21 | 0.62` | T6410 T6410C | TS6410 | 50×130×31 | 2.07 |
T6212 T6212C | TS6212 | 60×110×22 | 0.76 | T6411 T6411C | TS6414 | 55×140×33 | 2.48 |
T6213 T6213C | TS6213 | 65×120×23 | 1.01 | T6412 T6412C | TS6412 | 60×150×35 | 3.08 |
T6214 T6214C | TS6214 | 70×125×24 | 1.1 | T6414 T6414C | TS6414 | 70×180×42 | 5.25 |
T6215 T6215C | TS6215 | 75×130×25 | 1.16 | ||||
T6216 T6216C | TS6216 | 80×140×26 | 1.43 | ||||
Types:-Z、-2Z、-N、-ZN、-2ZN、-RS、-2RS... |
Product name | High temperature bearing LTS6301ZZ high temperature resistant deep groove ball bearing 6301ZZ |
Series | LTS6301ZZ |
Brand name | ZYSL |
Weight | 0.06kg |
Outer diameter | 37mm |
Bore size | 12mm |
Width | 12mm |
Material | high temperature resistant material |
Cage | Steel,brass,nylon |
Precision | V1 V2 V3 V4 |
Quality | ISO9001:2008 |
Service | Original and design service |
Product advantage | 1.High-load with high-end technology and low-noise;
2.Long-life with high quality; 3.Competitive price and OEM service; |
Application | Machinery,etc. |
FAQ:
Q: What kind of bearings you supplied?
A: We supply all specification of bearings:deep groove ball bearings ----tapered roller bearings----- cylindrical roller bearings ----Spherical Roller Bearings----- angular contact bearings - - thrust roller bearings ----thrust ball?bearings----spherical bearings -needle roller bearings----pillow block bearings----sliding guid bearings----wheel hub bearings and high-precision low-noise high-speed operation of special bearings.
We also agent and supply all world famous brands of bearings.
Non-standard bearings can be?produced according to your drawing in our factory.
A: The precision of the bearings (dimension tolerance, loading rate), internal clearance and hardness under?heat treatment, structure of cage and material.
Q:The advantage of bearings??
(1) reduce friction and wear.
(2) prolong fatigue life.
(3) exhaust friction heat and cooling.
Q:Application area of bearings ?
It can cover almost all mechanical industries, including robotic systems, lathes, tools, automobiles, large equipment, and so on.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A:Sample needs 3-7 days, mass production time needs 3-4 weeks.
A:We accept T/T, PAYPAL or Western Union, credit card.
If you need the any brands or any models of bearings, please contact me!
