To be the top bearing manufacturers in world is our goal,ZYSL bearing Co., Ltd is the first choice of your bearing manufacturers list!
Inch roller bearing NO.018345 is a track roller bearing 018345,it is high load capacity and can operate at high speeds.It is in stock and can sent in 1 day.Applications: (1) agricultural machinery, tractors, planter, harvesting machinery and so on. (2) the heavy mining machinery, metallurgical machinery, mining machinery, lifting machinery, loading and unloading machinery, industrial and mining vehicles, cement equipment, etc. (3) engineering machinery forklift, shoveling transport machinery, compaction machinery, concrete machinery, etc.

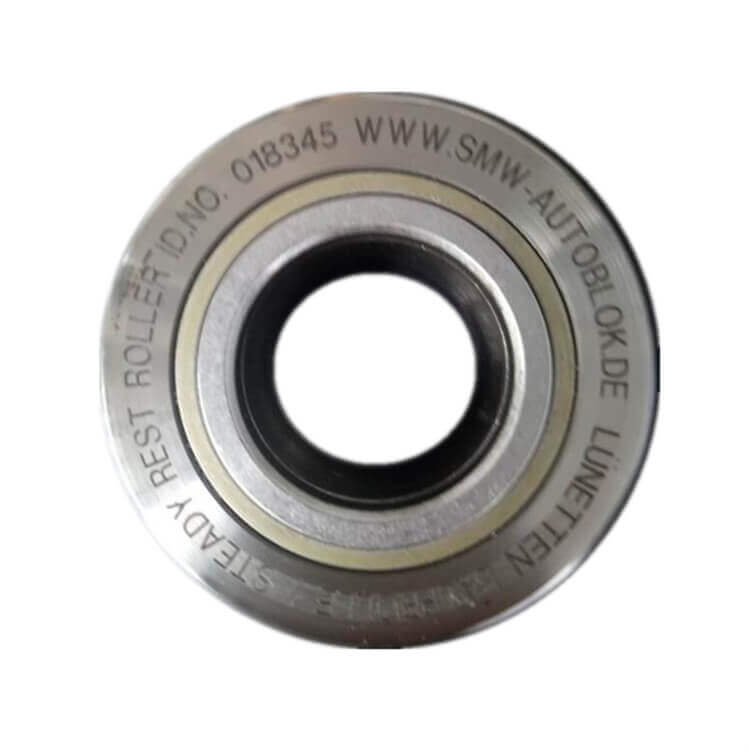

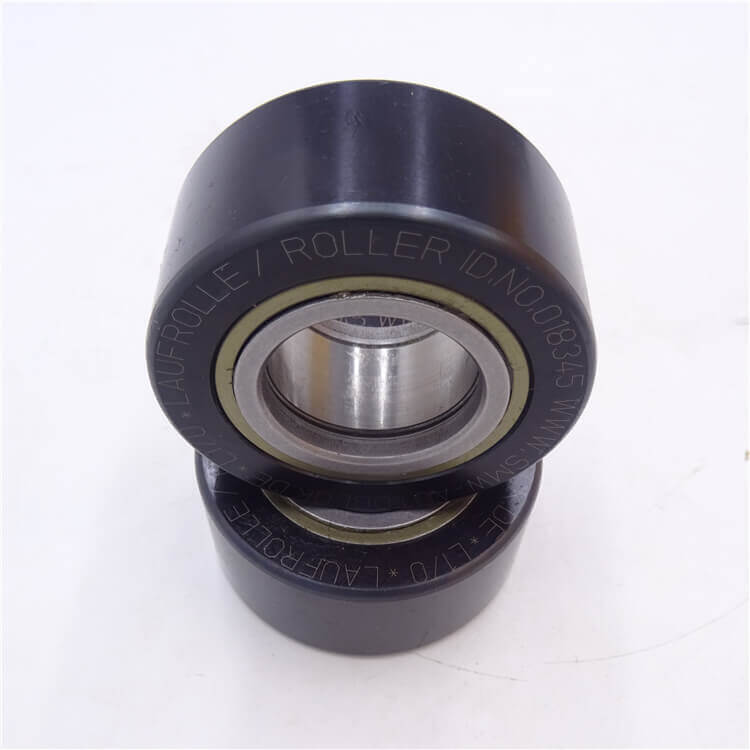

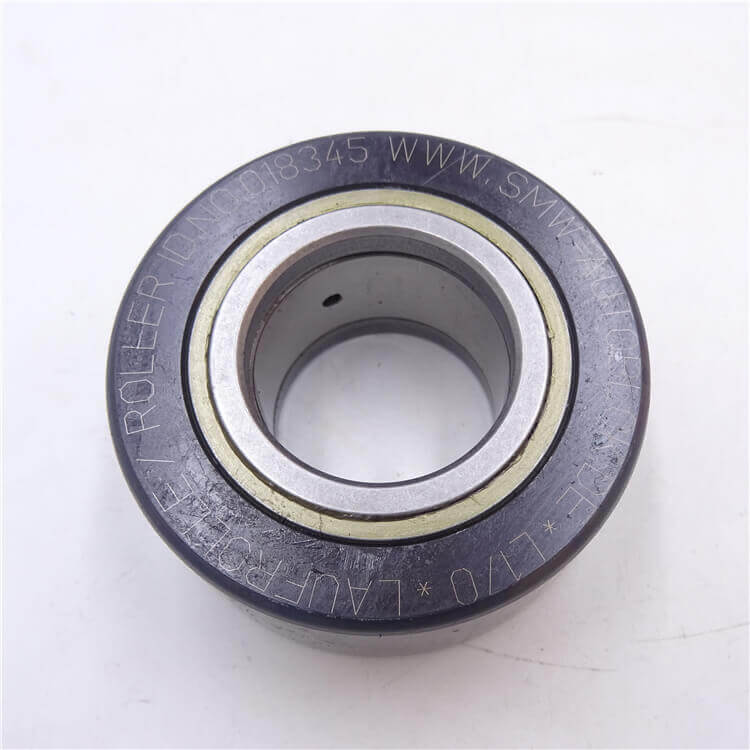

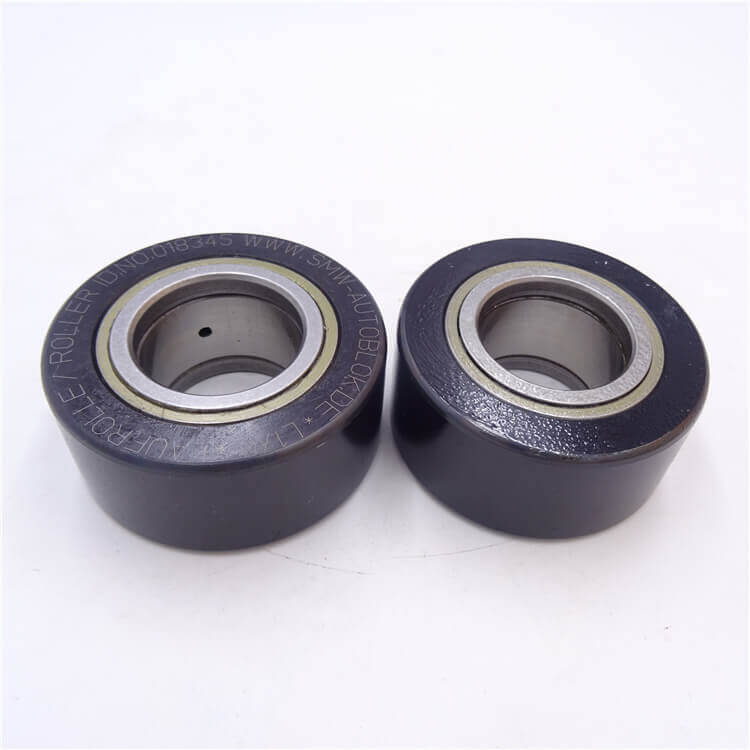

Inch roller bearing NO.018345 track roller bearing 018345
The releted models of Inch roller bearing NO.018345 track roller bearing 018345
Model | Weight | d | D | C | B1 | B2 | G | G1 | |
No Seal | Reference model | (g) | mm | mm | mm | mm | mm | mm | |
CF 3 | KR10 | 4.5 | 3 | 10 | 7 | 17 | 9 | M3X0.5 | 5 |
CF 4 | KR12 | 7.5 | 4 | 12 | 8 | 20 | 11 | M4X0.7 | 6 |
CF 5 | KR13 | 10.5 | 5 | 13 | 9 | 23 | 13 | M5X0.8 | 7.5 |
CF 6 | KR16 | 18.5 | 6 | 16 | 11 | 28 | 16 | M6X1 | 8 |
CF 8 | KR19 | 28.5 | 8 | 19 | 11 | 32 | 20 | M8X1.25 | 10 |
CF10 | KR22 | 45 | 10 | 22 | 12 | 36 | 23 | M10X1.25 | 12 |
CF10-1 | KR26 | 60 | 10 | 26 | 12 | 36 | 23 | M10X1.25 | 12 |
CF12 | KR30 | 95 | 12 | 30 | 14 | 40 | 25 | M12X1.5 | 13 |
CF12-1 | KR32 | 105 | 12 | 32 | 14 | 40 | 25 | M12X1.5 | 13 |
CF16 | KR35 | 170 | 16 | 35 | 18 | 52 | 32.5 | M16X1.5 | 17 |
CF18 | KR40 | 250 | 18 | 40 | 20 | 58 | 36.5 | M18X1.5 | 19 |
CF20 | KR47 | 460 | 20 | 47 | 24 | 66 | 40.5 | M20X1.5 | 21 |
CF20-1 | KR52 | 385 | 20 | 52 | 29 | 66 | 40.5 | M20X1.5 | 21 |
CF24 | KR62 | 815 | 24 | 62 | 29 | 80 | 49.5 | M24X1.5 | 25 |
CF24-1 | KR72 | 1140 | 24 | 72 | 29 | 80 | 49.5 | M24X1.5 | 25 |
CF30 | KR80 | 1870 | 30 | 80 | 35 | 100 | 63 | M30X1.5 | 32 |
CF30-1 | KR85 | 2.03 | 30 | 85 | 35 | 100 | 63 | M30X1.5 | 32 |
CF30-2 | KR90 | 2220 | 30 | 90 | 35 | 100 | 63 | M30X1.5 | 32 |
Parameters of Inch roller bearing NO.018345 track roller bearing 018345 :
Name | Inch roller bearing NO.018345 track roller bearing 018345 |
Ring material | Chrome Steel GCr15 |
Brand | ZYSL/OEM |
Precision | P0,P6,P5,P4 |
Clearance: | C2 ,C3, C4 |
Quality standard | ISO9001:2008 |
Samples | Available |
Service | OEM |
Payment terms | A:100% T/T in advance |
B: 30% T/T in advance .70% against copy of B/L | |
C.West Union | |
D.L/C at sight | |
Application | Heavy machine tool, high-powered marine gear case, oil rig, vertical machine. |
Series | 1. Single row tapered roller bearings |
2. Double row tepered roller bearings | |
3. Four row tapered roller bearings | |
4. Paired single row tpered roller bearings | |
Features | 1.High quality and good service |
2.Less friction and low noise | |
3.Competitve price | |
4.Durable | |
5.Professional manufacturer of ball bearing and roller bearing |
FAQ:
1. How long is your delivery term?
Our standard product delivery term is normally 30 days. A new product development cycle is 60 days in normal. Under normal circumstances, there are standing stock for regular types. You can email us to learn more details.
2. Where is your port of shipment located?
Our main port of shipment is Guangzhou port, and we may operate at other ports if required by the customer.
3. I couldn’t find a design to fit my application in your catalog. Can you help me design a bearing?
Yes, technical expertise is available to assist you with engineering design for custom products. Available options include, but are not limited to, custom rings, retainers, balls, shields, lubricants, and packaging. We look forward to working with you to satisfy your rotary motion requirements.
