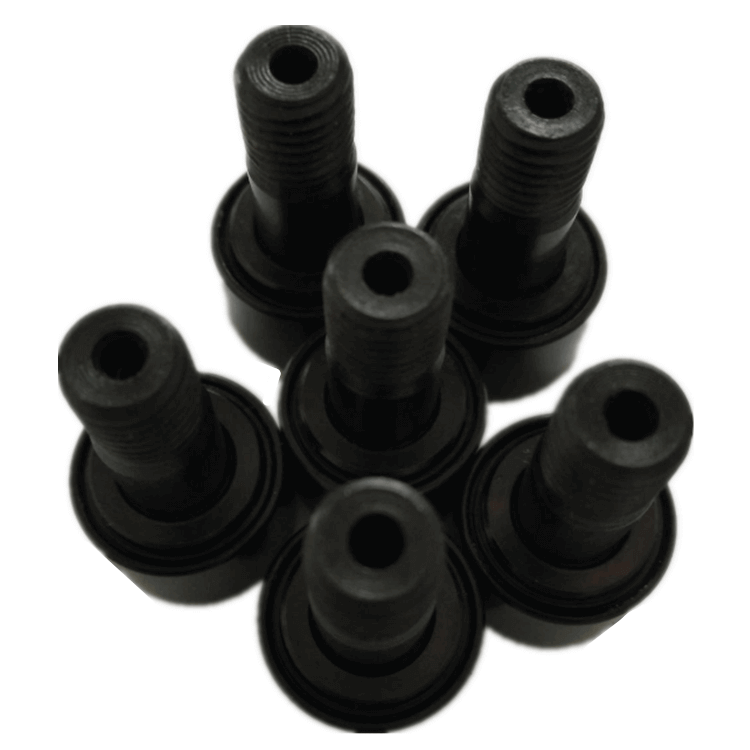

ZYSL KR22 bearing 10*22*12mm KR22 needle roller bearing

Description of ZYSL KR22 bearing 10*22*12mm KR22 needle roller bearing:

ZYSL KR22 bearing 10*22*12mm KR22 needle roller bearing are similar in their construction to single and double row yoke type track rollers, except that the raceway is formed by a heavy-section roller stud with a fixing thread and lubrication hole.

Due to the thick-walled outer ring with profiled outside surface and the rolling element set, they can support high radial loads as well as axial loads arising from slight misalignment and skewed running; ZYSL KR22 bearing 10*22*12mm KR22 needle roller bearing is suitable for applications such as cam gears, bed ways and conveying equipment.

ZYSL KR22 bearing 10*22*12mm KR22 needle roller bearing with labyrinth seals and cylindrical rollers is designed for cam- and track-type applications, and supports high radial loads and axial loads resulting from slight misalignments. It has a thick-walled outer ring that helps minimize deformation under heavy radial and shock loads, and a contoured outer surface that helps evenly distribute loads when misalignments occur. This cam follower has a threaded stud-type design for through-hole or threaded mounting, and a hexagonal hole on the flange end that provides greater holding power during mounting than a screwdriver slot. This cam follower holds a full complement of cylindrical rollers for a higher radial load-carrying capacity than caged rollers. The cylindrical rollers and ribs provide axial guidance to the outer ring. Labyrinth seals on both sides of the bearing retain a lithium complex soap grease lubricant applied at manufacture and help protect against contaminants.

Specifications of ZYSL KR22 bearing 10*22*12mm KR22 needle roller bearing

KR22 bearing

FAQ of ZYSL KR22 bearing 10*22*12mm KR22 needle roller bearing:
1. How long is your delivery term for ZYSL KR22 bearing 10*22*12mm KR22 needle roller bearing?
Our standard product delivery term is normally 30 days. A new product development cycle is 60 days in normal. Under normal circumstances, there are standing stock for regular types. You can email us to learn more details.
2. Where is your port of shipment located for ZYSL KR22 bearing 10*22*12mm KR22 needle roller bearing?
Our main port of shipment is Guangzhou port, and we may operate at other ports if required by the customer.
3. I couldn’t find a design to fit my application in your catalog. Can you help me design a bearing?
Yes, technical expertise is available to assist you with engineering design for custom products. Available options include, but are not limited to, custom rings, retainers, balls, shields, lubricants, and packaging. We look forward to working with you to satisfy your rotary motion requirements.

If you need the ZYSL KR22 bearing 10*22*12mm KR22 needle roller bearing or any other bearings, please contact me!
