To be the top bearing manufacturers in world is our goal,ZYSL bearing Co., Ltd is the first choice of your bearing manufacturers list!

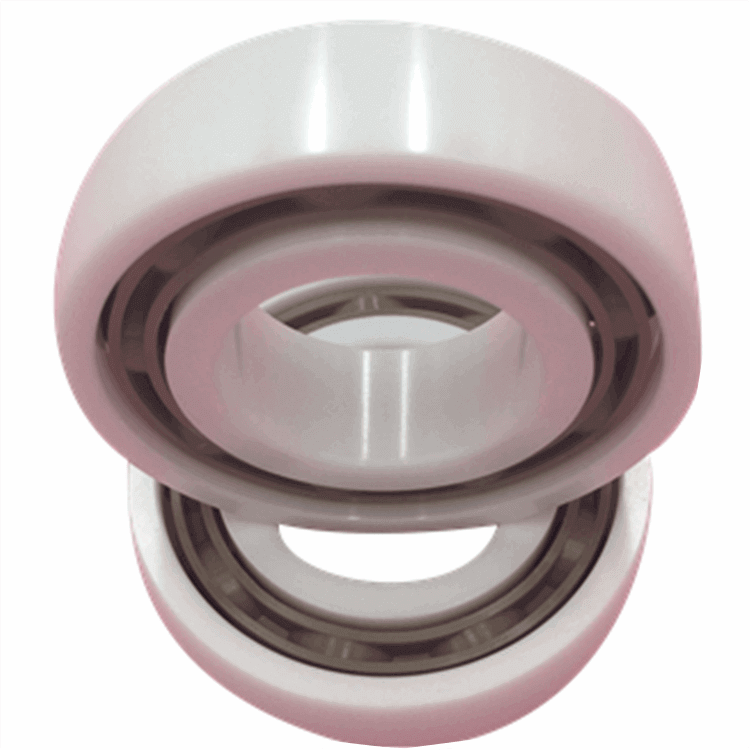

ZYSL teflon bearing 6807 plastic ball bearings 6807 plastic deep groove ball bearing,35*47*7mm.It has plastic rings with glass balls.It is high speed and high precision.It is waterproof without grease.When we using the bearing in water,the bearing's rotating speed is more high than using in air.
ZYSL teflon bearing 6807 plastic ball bearings 6807 plastic deep groove ball bearing
Related models of ZYSL teflon bearing 6807 plastic ball bearings 6807
| Bearing Model | Bore | Outside Diameter | Width | Load Rating(KN) | Ball | Limiting Speed | ||||||
| d | D | B | Dynamic | Static | Qty | Size | Grease | Oil | ||||
| mm | inch | mm | inch | mm | inch | Cr | Cor | mm | rpm | rpm | ||
| 6800 | 10 | 0.3937 | 19 | 0.748 | 5 | 0.1969 | 1.8 | 0.93 | 11 | 2.381 | 28000 | 36000 |
| 6801 | 12 | 0.4724 | 21 | 0.8268 | 5 | 0.1969 | 1.9 | 1 | 12 | 2.381 | 24000 | 32000 |
| 6802 | 15 | 0.5906 | 24 | 0.9449 | 5 | 0.1969 | 2.1 | 1.3 | 14 | 2.381 | 22000 | 30000 |
| 6803 | 17 | 0.6693 | 26 | 1.0236 | 5 | 0.1969 | 2.2 | 1.5 | 16 | 2.381 | 20000 | 28000 |
| 6804 | 20 | 0.7874 | 32 | 1.2598 | 7 | 0.2756 | 3.5 | 2.2 | 14 | 3.175 | 18000 | 24000 |
| 6805 | 25 | 0.9843 | 37 | 1.4567 | 7 | 0.2756 | 4.3 | 2.9 | 15 | 3.5 | 16000 | 20000 |
| 6806 | 30 | 1.1811 | 42 | 1.6535 | 7 | 0.2756 | 4.7 | 3.6 | 18 | 3.5 | 13000 | 17000 |
| 6807 | 35 | 1.378 | 47 | 1.8504 | 7 | 0.2756 | 4.9 | 4 | 20 | 3.5 | 11000 | 15000 |
| 6808 | 40 | 1.5748 | 52 | 2.0472 | 7 | 0.2756 | 5.1 | 4.4 | 22 | 3.5 | 10000 | 13000 |
| 6809 | 45 | 1.7716 | 58 | 2.2834 | 7 | 0.2756 | 6.4 | 5.6 | 22 | 3.969 | 9000 | 12000 |
| 6810 | 50 | 1.9685 | 65 | 2.559 | 7 | 0.2756 | 6.6 | 6.1 | 24 | 3.969 | 8500 | 10000 |
In troduction of teflon bearing 6807 plastic ball bearings 6807
POM plastic bearings , PP plastic bearing POM and PA materials with good mechanical strength and wear resistance , suitable for the production of more sophisticated plastic bearings, working temperature from -60 °C ~ 100 °C, high strength and smooth surface , basically does not appear tension , its good self-lubricating properties and low coefficient of friction , while maintaining the traditional advantages of plastic bearings on the basis of precise and can be used in high speed operation .
Features of teflon bearing 6807 plastic ball bearings 6807
(1) rigidity, high hardness , even at low temperatures , high impact strength
(2) good excellent elasticity , creep resistance ;
(3) high thermal stability and very good dimensional stability ;
(4)good sliding properties , wear resistance ;
(5) physiologically inert , suitable for contact with food.
(6) Even in strong acid and strong oxidizing agents, poor paint adhesion
Main purpose of teflon bearing 6807 plastic ball bearings 6807 plastic deep groove ball bearing
Mechanical and electrical equipment , fitness equipment , food machinery , furniture and
Decorating materials of teflon bearing 6807 plastic ball bearings 6807
HDPE, PP, UPE material has proven to be relatively weak acid cross- environment (30% Cucl2 solution and 30% NaoH solution tested OK) it is suitable for most acid / base / salt / solvent / oil / gas and seawater corrosion environment. With general plastic bearings oil-free self -lubricating, anti-magnetic insulation properties, but lower mechanical strength,easily deformed. In comparison, the use of UPE material will have better strength, low friction characteristics and low temperature application characteristics (down to -150 °C).
PTFE high-temperature corrosion-resistant plastic bearings
PTFE and PI as a new plastic material , proved to be all known engineering plastics and high temperature mechanical strength, dimensional stability and better performance , in which long-term use temperature of PTFE 260 °C, PI long-term use temperature is as high as 300 °C , and which has excellent corrosion resistance.
Customized colors,materials,logo and box are acceptable.
| Product name | ZYSL teflon bearing 6807 plastic ball bearings 6807 plastic deep groove ball bearing |
| bearing materials | teflon plastic rings and cage, glass balls |
| Quality Certificate | ISO9001:2008 |
| Feature | Low noise, less vibration, high precision and long life |
| ID*OD*W(mm) | 35*47*7mm |
| Limiting Speed: | 13000 rpm (Grease lubricated); 19000 rpm (Oil lubricated); |
| Net weight(kg) | 0.03KG |
| Brand name | OEM,ZYSL |
| Tolerance level | ABEC-1 (P0), ABEC-3 (P6)ABEC-5,ABEC-7,ABEC-9 |
| Seals type | open |
| Precision rating | P0, P6 |
| Antirust period | Bearings should normally be put under the protected condition then it is to be stored and preserved. The rustresisting period is two years. |
| Application | Mining operations, paper mills, oil fields, marine industry, steel, electrical, construction machinery, various kinds of professional machinery and heavy industry of all types. |
FAQ:
1. How long is your delivery term?
Our standard product delivery term is normally 30 days. A new product development cycle is 60 days in normal. Under normal circumstances, there are standing stock for regular types. You can email us to learn more details.
2. Where is your port of shipment located?
Our main port of shipment is Guangzhou port, and we may operate at other ports if required by the customer.
3. I couldn’t find a design to fit my application in your catalog. Can you help me design a bearing?
Yes, technical expertise is available to assist you with engineering design for custom products. Available options include, but are not limited to, custom rings, retainers, balls, shields, lubricants, and packaging. We look forward to working with you to satisfy your rotary motion requirements.
