What is the principle of roller bearing track systems?

Roller bearing track systems are high-rigidity and high-precision as a follow-up bearing for cam mechanisms and linear motion. roller bearing track systems are widely used in exposure machines, winding machines, automation equipment guides and automatic locking screw machines. Stainless steel roller bearing track systems are excellent in corrosion resistance and are suitable for use in clean room environments and high humidity environments.

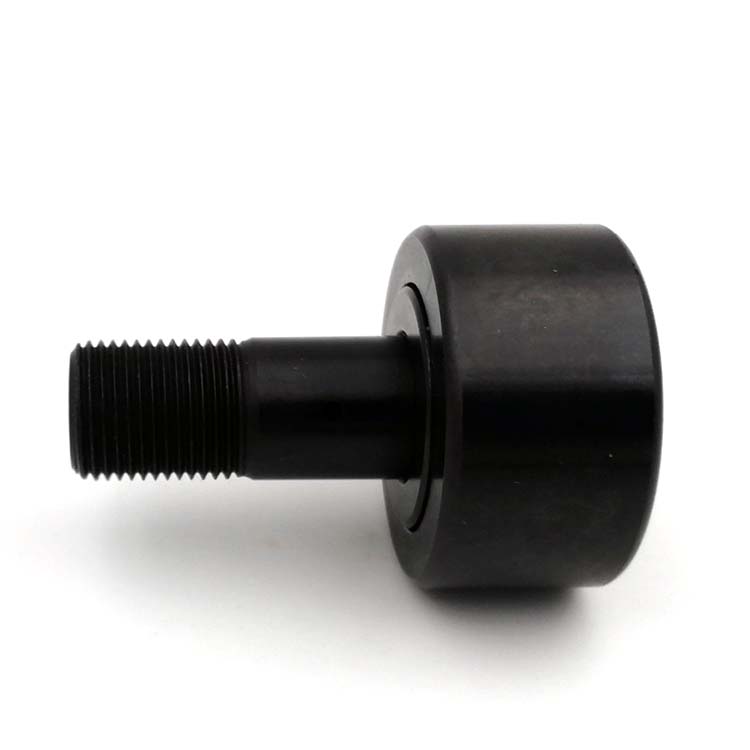

standard roller bearing track systems are the basic models of cam follower bearings. The rod end diameter ranges from a minimum of 3mm to a maximum of 30mm. It is available in a wide range of sizes, including cages, full rollers, shielded, sealed, spherical outer rings, and cylindrical outer tubes. Circles and other types.

The rollers are guided by a roller bearing track system with a cage and a full complement roller bearing track system. The bearing with the cage is suitable for a part with a low friction coefficient and a high speed. The full roller bearing is suitable for low speed rotation and carries heavy load. The part.

The structure of the sealing portion is provided with a shielded roller bearing track system and a sealed roller bearing track system. The shielded bearing outer ring and the rod end collar portion and the outer ring and the side plate are small to form a labyrinth. The sealed bearing is fitted with a gasket in the shielded labyrinth to prevent foreign matter from entering. The shape of the outer diameter of the outer ring is used to directly contact the sliding surface of the other side. The outer diameter of the outer ring of the roller bearing track system is provided with a spherical surface and a cylindrical surface. The bearing of the spherical outer ring can alleviate the unevenness caused by the installation error. load. The bearing of the outer ring of the cylinder has a large contact area with the sliding surface of the other side, and is suitable for a sliding surface with a large load or a low hardness.

The load of the roller bearing track systems depends on the rated load of the needle roller bearing, but is sometimes determined by the bending strength, shear strength and strength of the outer ring of the rod end. Therefore, the maximum static allowable load is specified.

The guiding load capacity refers to the contact between the outer ring of the roller bearing track system and the guiding surface (planar) of the mounting side steel, and the material of the mounting side member is not deformed or indented, and the continuous load can be continuously withstood. In addition, if the lubrication between the outer ring and the other side rail is insufficient, under certain working conditions, sintering or wear sometimes occurs. Especially for high-speed rotation such as roller bearing track systems, attention should be paid to lubrication and surface finish.
