Do you know the type and installation of cam roller follower bearing?

Types of cam roller follower bearing:

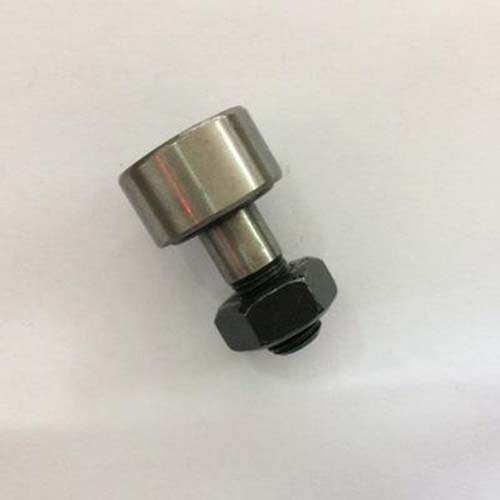

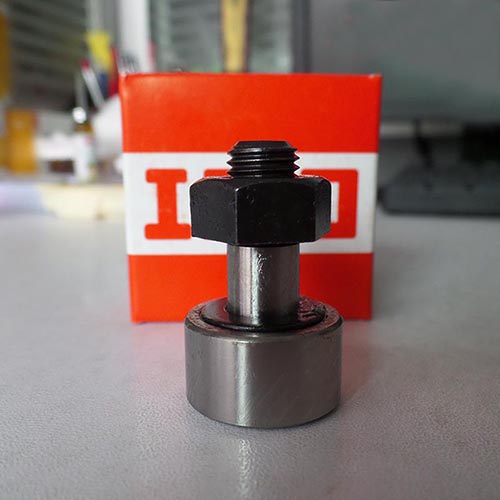

standard cam follower bearing CF type: Standard cam follower bearing CF is the basic form of cam follower bearing. The rod end diameter ranges from a minimum of 3mm to a maximum of 30mm, with a wide range of sizes and a wide range of applications.

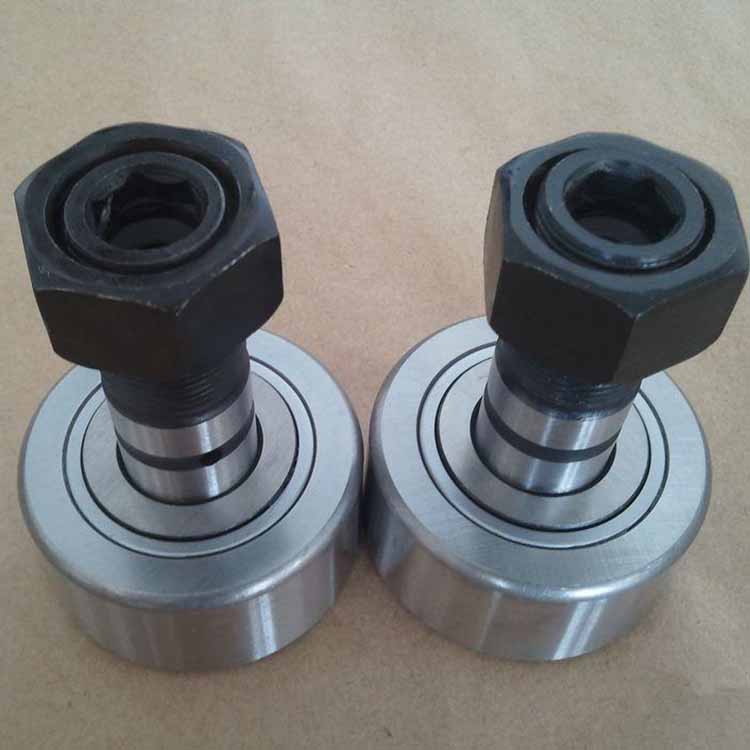

cam follower bearing with hexagon hole can be filled with lubricating oil from the top of the rod end
Cam follower bearings have high rigidity and high precision as follower bearings for cam mechanisms and follower bearings for linear motion, and are widely used in machine tools, industrial manipulators, electronic components, and OA equipment.

Installation of cam roller follower bearing:
1. After making the center line of the mounting hole and the movement direction of the cam follower bearing at right angles, the side of the mounting hole should be aligned correctly according to the / size in the size table and then fixed with a nut. During installation, do not directly hit the flange of the cam follower bearing with a hammer, otherwise it may cause improper rotation or breakage.

2. The mark on the side of the rod end flange indicates the oil hole position on the track surface S. When installing the cam roller follower bearing, be careful not to install the oil hole in the load area. Oil holes located in the load domain will shorten the service life of the bearing. The vertical hole in the center of the rod end is used for refueling or stopping.
3. When tightening the nut, it should not exceed the maximum tightening torque range shown in the dimension table. Excessive tightening torque may sometimes cause the threaded part of the rod end to break. In addition, if it is used under some working conditions that may loosen the nut, use a lock nut, spring washer or special lock nut, etc.

4. Eccentric cam roller follower bearing and cam follower with eccentric bushing. The position S of the outer ring of the cam roller follower bearing can be adjusted by rotating it with a screwdriver or hexagonal hole on the top of the rod end. The rod end can be fixed with a spring washer and screwed with a nut. When tightening the nut, the maximum tightening torque range shown in the dimension table should not be exceeded.
