The skill of using ses linear bearings is easy and simple to know

First, the basic concept:

ses linear bearings is a linear motion system with high precision, low cost and low frictional resistance. The ses linear bearings is a direct acting system that uses the rolling motion of the ball to achieve infinite linear motion in combination with the guide shaft.
Since the carrier ball is in point contact with the shaft, the load used is small. The steel ball rotates with a very small frictional resistance, so that high-precision smooth motion can be obtained.

Second, the work process

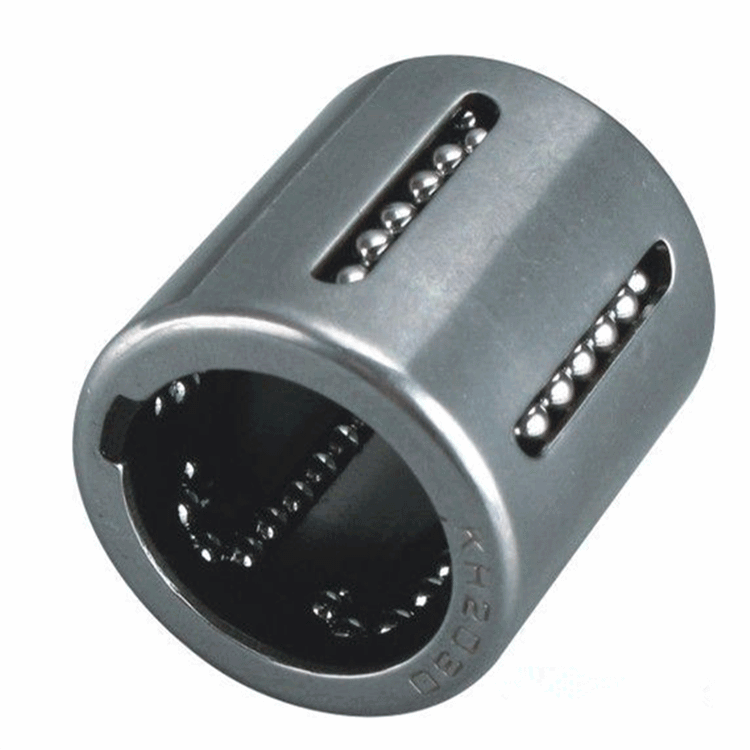

The ses linear bearings is equipped with a steel ball cage inside the outer ring, the cage is equipped with a plurality of balls, and the balls are infinitely circulating. The two ends of the cage are fixed by a gasket retaining ring, and a notched window is arranged in the direction of the linear track in which the steel balls are subjected to the force work. This part is to make the loaded steel ball roll contact with the shaft with a very low friction coefficient. Relative movement.
Therefore, ses linear bearings are the most suitable bearings for mechanical equipment, automation equipment, energy-saving equipment, etc.

Fourth, classification:

1, by material
Housing: stainless steel, bearing steel, aluminum alloy (straight bearing with seat);
Cage: resin, stainless steel, bearing steel;
Surface treatment: chrome plating, nickel plating, surface anodizing (ses linear bearings outer mount), etc.;
The ses linear bearings included in our catalogue are shell bearing steel, resin-lined cages, and untreated products on the surface; ses linear bearings with seats are the above-mentioned ordinary linear bearings with aluminum alloy seats.

2, by shape

Open type, closed type;
Straight column type, single lining type (common type), double lining type (lengthened type);
Single-lined with flange, double-lined with flange;
Two-sided cutting flange type, intermediate cutting flange type, four-sided cutting flange type;
With fixed seat height square (fixed seat material aluminum alloy, surface anodized), with fixed seat wide square and so on.

3, by series

Linear bearings are divided into two series, namely LM and LME series.
The LM series is used in Asia, Southeast Asian countries, Japan, Korea, China, etc.
The LME series is mostly used in Europe, the United States, Germany, Italy and other regions. Two series of structural features, in addition to different sizes, different aperture tolerances, the structure is roughly the same.

ZYSL company specializes in ses linear bearings for many years. All raw materials and accessories have been carefully selected to ensure a good user experience.

Welcome to contact me to know the price of ses linear bearings!
