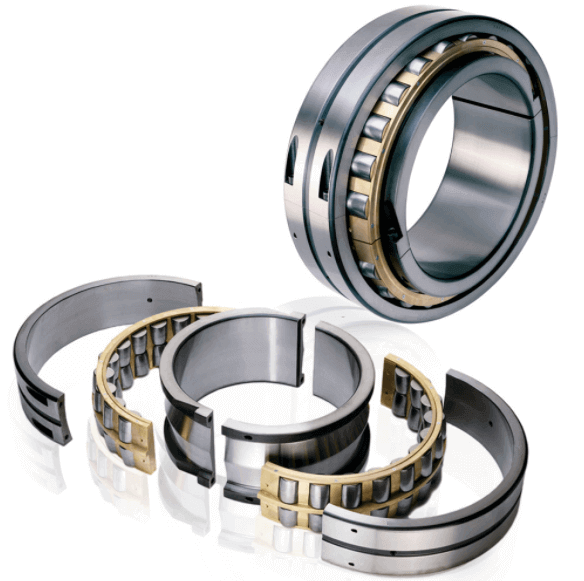

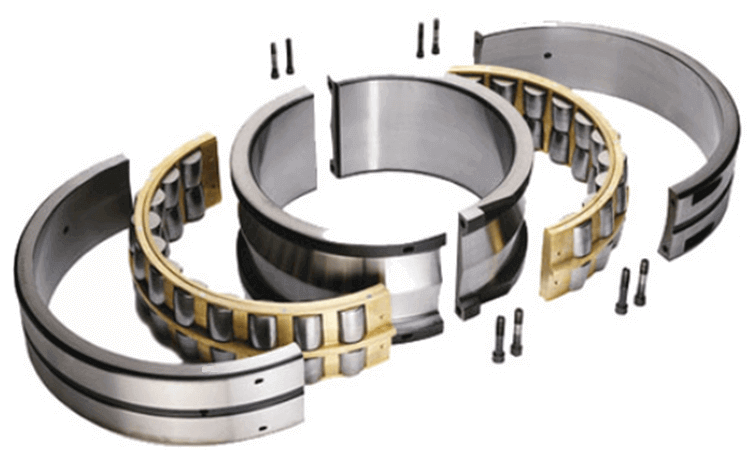

The split spherical roller bearing consists of an outer ring, a roller, a small cage, a clamping ring, a large cage, a pillar and an inner ring. The outer ring, the inner ring, the small cage and the large cage of the split spherical roller bearing are symmetric. The semi-structure has a spherical surface on both ends of the inner ring, and a sealing system is formed by a concave spherical sealing ring and a sealing felt on the bearing seat, and the inner ring is widened to replace the axially positioned spacer of the bearing.
Advantages of split spherical roller bearing:
Quickly change the split spherical roller bearing in an inaccessible position
Since the replacement of non-split spherical roller bearings requires a lot of additional work (including removal of gears or couplings, disassembly of the transmission, and disassembly of the shaft power unit), split spherical roller bearings are mainly used.
The use of split spherical roller bearings reduces machine and equipment downtime.

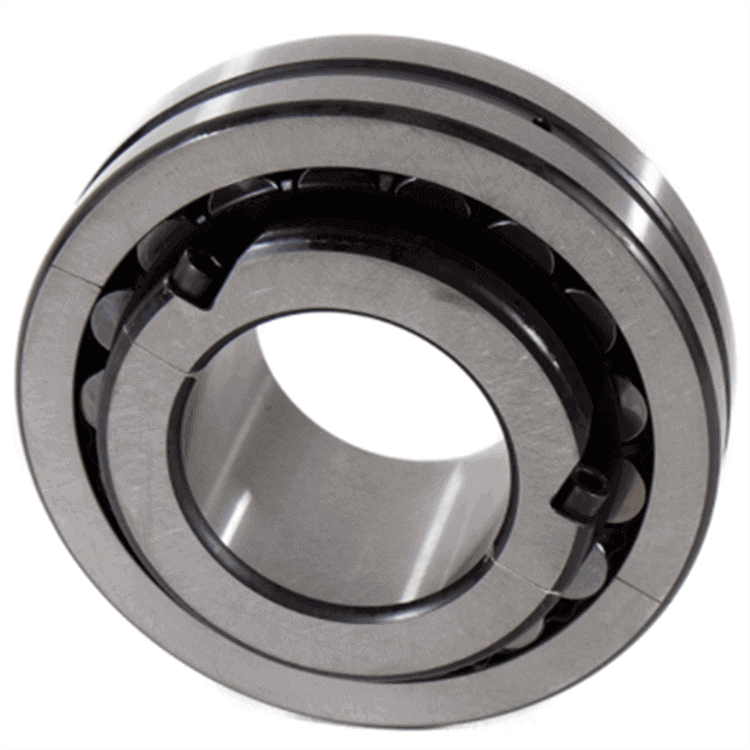

Split spherical roller bearing
Due to the reduced downtime, the split spherical roller bearing can significantly reduce installation costs.
In the new design, split spherical roller bearings can save costs in most cases because the equipment is simplified and the required assembly work is reduced.
Application example of split spherical roller bearing
The split spherical roller bearing is mainly used for shafts supported by several points and positions that are difficult to access. Typical applications include conveyor equipment, material handling equipment, ventilation equipment, steel rolling, marine and paper.
Application examples of split spherical roller bearing in the field of mining and material processing:
Bucket wheel excavator and reclaimer
Winch pulley
Pot rail conveyor
Bucket wheel and belt conveyor
Mixing and mixing equipment
Mill and crusher
Sintering equipment, drum shape
Fan and fan
Dust removal equipment
Transmission and drive shaft
ZYSL company specializes in split spherical roller bearing for many years. All raw materials and accessories have been carefully selected to ensure a good user experience.
Welcome to contact us!
