How to install and maintain the Track Runner Bearing?

1,481 Published by Feb 15,2019

The Track Runner Bearing is a sealed structure, filled with grease, providing long-term effective lubrication, and users can be free of lubrication. Improve the Track Runner Bearing life by using a channel that can be designed to replenish grease with harsh conditions. Improper means can also cause the Track Runner Bearing to heat up. Lubrication can reduce wear during movement of parts, ensure press accuracy and reduce energy consumption. Lubrication is divided into thin oil lubrication, concentrated oil lubrication, etc.

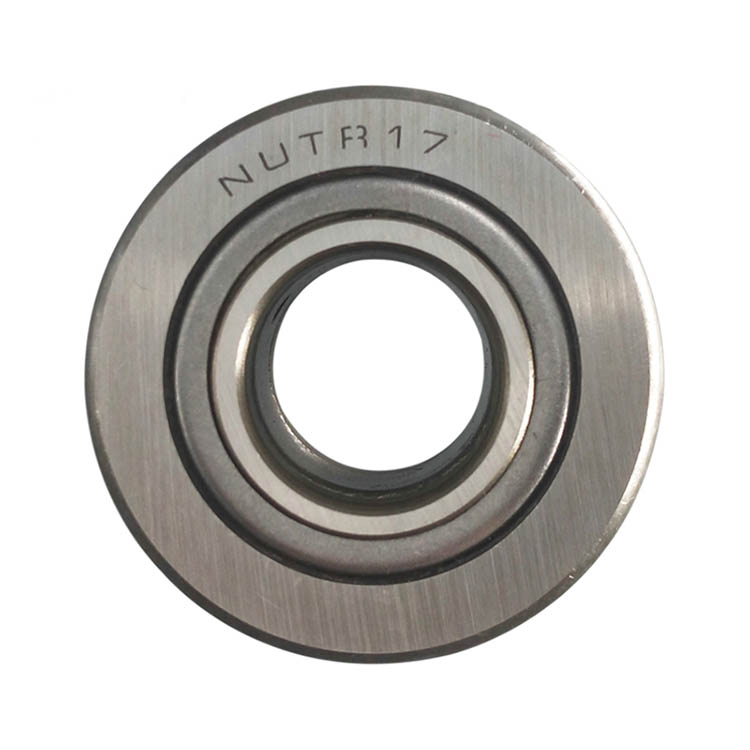

Track Runner Bearing

Installation of Track Runner Bearing
1) Wash the bearing with kerosene, press it into the bearing seat, fill the roller of the Track Runner Bearing outer ring with Shell No. 3 lithium base grease to two-thirds full, apply evenly with the net hand, install the bearing gland, apply with the coating The fastening bolt of the bolt anti-slipping rubber is pressed against the Track Runner Bearing gland;
2) The Track Runner Bearing is a cylindrical roller bearing with a detachable inner casing. The bearing should be placed on the rotating shaft and placed in place;
3) Mount the Track Runner Bearing housing on the casing. If there is grease grease hole, it must be aligned. Fasten the bearing block with the fastening bolts of the anti-loosening rubber;

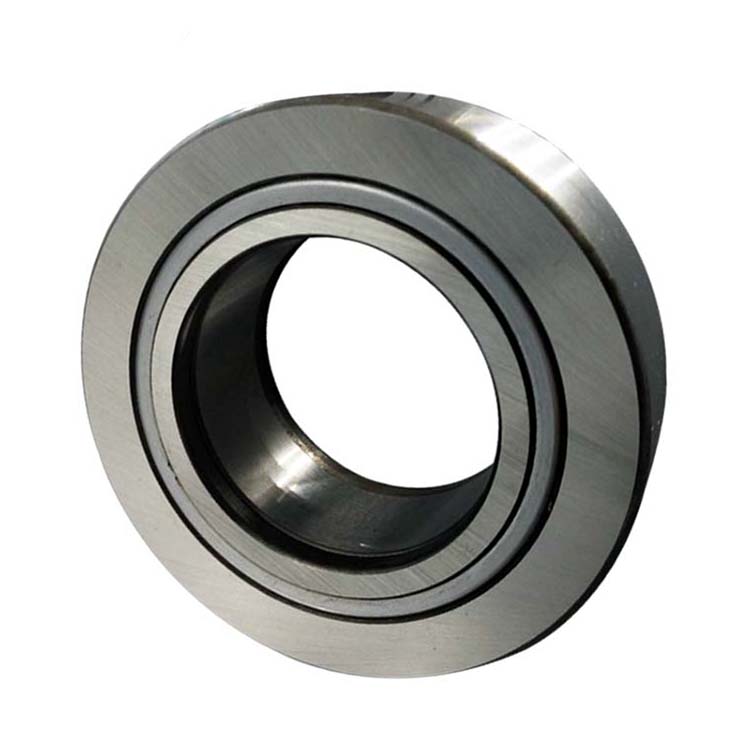

original Track Runner Bearing

4) The inner and outer eccentric blocks are mounted on the rotating shaft and are in place. If there is a shaft key, the shaft key should be inserted into the keyway and then the outer eccentric block should be installed, and the shaft can be mounted on the rotating shaft with the retaining ring;
5) Tightly fix the eccentric block fastening bolts and turn the adjustable eccentric block to the angular position before the unloading and tighten the fastening bolts. After the above assembly is completed, the shaft should have a certain axial movement;
6) The protective cover on both ends of the upper vibration motor is fastened with screws.

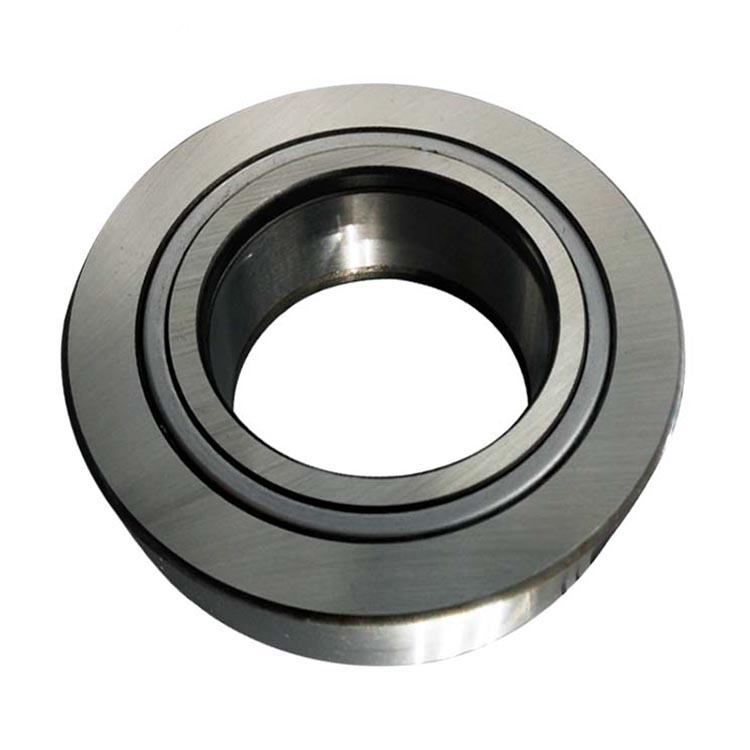

Track Runner Bearing in stock

Maintain of Track Runner Bearing
Thin oil lubrication: The advantage is that the internal friction coefficient is small, so the energy consumption against friction is small, the thin oil has good fluidity, easy to enter the friction surface of each lubrication point, has good cooling effect, and can adhere to the friction surface. Impurities and metal particles generated by grinding are carried away. The disadvantage of Track Runner Bearing is that the oil film cannot withstand large unit pressures and has high requirements for sealing. High-speed presses are generally lubricated with large flow and thin oil, which can take away the heat generated by each friction pair.
